| Place of Origin: | China |
| Brand Name: | FAG |
| Certification: | ISO 9001 2000 |
| Model Number: | F-687229.02.KL |

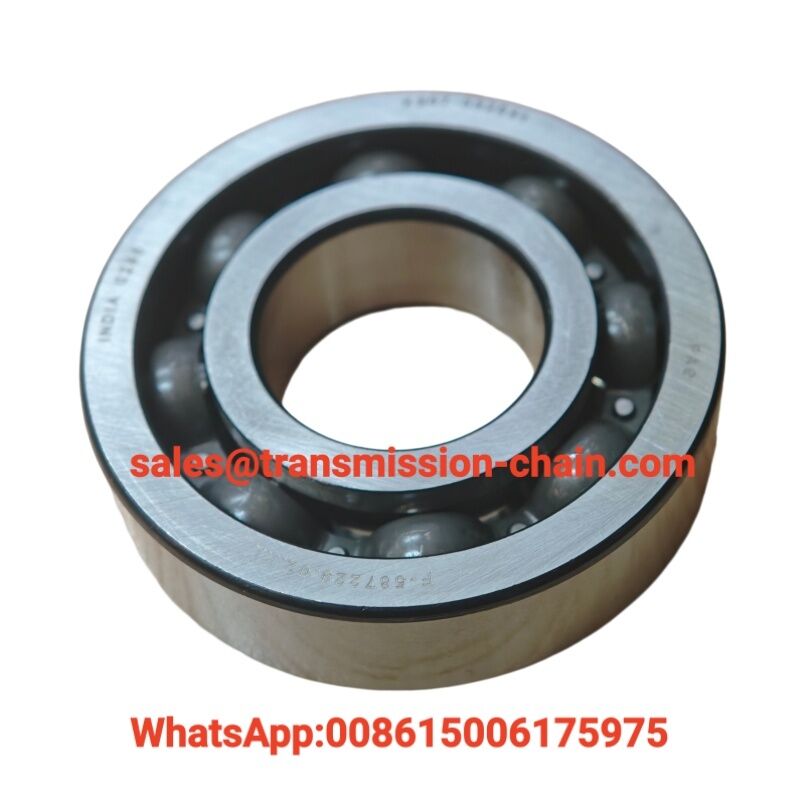

The FAG F-687229.02.KL bearing is a specialized automotive bearing engineered for smooth rotation and reliable mechanical performance. Identified by its part number as a deep groove ball bearing, it measures 25 × 56 × 15 mm and is designed for use in automotive gearbox applications.
| Brand | FAG |
|---|---|
| Part Number | F-687229.02.KL |
| Bearing Type | Deep groove ball bearing |
| Inner Diameter (d) | 25 mm |
| Outer Diameter (D) | 56 mm |
| Width (B) | 15 mm |
| Bearing Material | Chrome steel |
| Cage Material | Steel cage |
| Seal / Shield Type | Open |
| Lubrication | Oil / grease |
| Dynamic Load Rating | Please contact us |
| Static Load Rating | Please contact us |
| Limiting Speed | Please contact us |
| Precision Class | P6 |
| Application | Automotive gearbox |
| Metric Bearing No. | d (mm) | D (mm) | T (mm) | B (mm) | C (mm) | R (mm) | r (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 33012 | 60.000 | 95.000 | 27.000 | 26.000 | 21.000 | 1.5 | 1.5 | 0.666 |
| 33013 | 65.000 | 100.000 | 27.000 | 27.000 | 21.000 | 1.5 | 1.5 | 0.740 |
| 33016 | 80.000 | 125.000 | 36.000 | 36.000 | 29.500 | 1.5 | 1.5 | 1.615 |
| 33019 | 95.000 | 145.000 | 39.000 | 39.000 | 32.500 | 2.0 | 2.0 | 2.260 |
| 33021 | 105.000 | 160.000 | 43.000 | 43.000 | 34.000 | 2.5 | 2.0 | 2.980 |
| 33108 | 40.000 | 75.000 | 26.000 | 26.000 | 20.500 | 1.5 | 1.5 | 0.484 |
| 33109 | 45.000 | 80.000 | 26.000 | 26.000 | 20.500 | 1.5 | 1.5 | 0.536 |
| 33110 | 50.000 | 85.000 | 26.000 | 26.000 | 20.000 | 1.5 | 1.5 | 0.595 |
| 33113 | 65.000 | 110.000 | 34.000 | 34.000 | 26.500 | 1.5 | 1.5 | 1.300 |
| 33116 | 80.000 | 130.000 | 37.000 | 37.000 | 29.000 | 2.0 | 1.5 | 1.864 |
| 33118 | 90.000 | 150.000 | 45.000 | 45.000 | 35.000 | 2.5 | 2.0 | 3.130 |
For purchasing F-687229.02.KL deep groove ball bearings, contact our professional team:
Email: sales@transmission-chain.com
WhatsApp: 008615006175975
