| Place of Origin: | Korea |
| Brand Name: | ILJIN |
| Certification: | ISO 9001 2000 |
| Model Number: | ST-PE35001 |

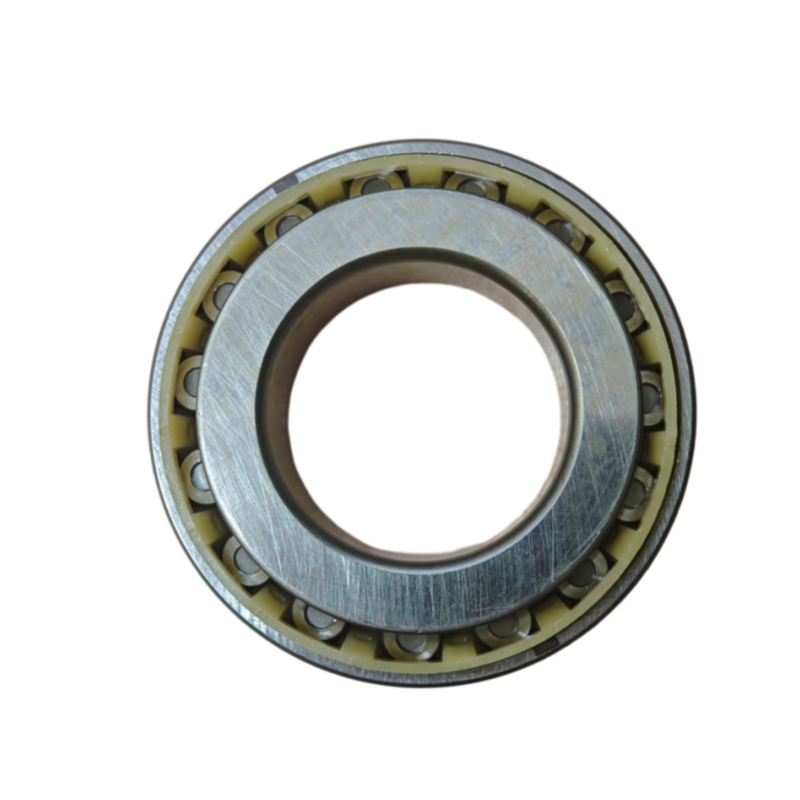

The ST-PE35001 bearing is an automotive transmission bearing associated with the differential assembly of Hyundai and Kia vehicles equipped with the A8MF1 automatic transmission. It supports the differential gear assembly, helping ensure smooth rotation, stable power transmission, and reliable operation. It is identified in parts listings as an ILJIN bearing, with reference number R11232042.
| Type | Taper roller bearing |
| Brand Name | ILJIN |
| Place of Origin | Korea |
| Material | Chrome steel |
| Dimension | 35 * 65 * 16.5/21 mm |
| Cage | Steel cage |
| Seals Type | Open |
| Certificate | COC |
| Lubrication | Oil or grease |
| Precision | P5 |
| Model | ST-PE35001 |
Automotive transmissions, gearboxes, drivetrain systems, differential assemblies, wheel-related auxiliary systems, and other automotive rotating components.
| Metric Bearing No. | d (mm) | D (mm) | T (mm) | B (mm) | C (mm) | R (mm) | r (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 33012 | 60.000 | 95.000 | 27.000 | 26.000 | 21.000 | 1.5 | 1.5 | 0.666 |
| 33013 | 65.000 | 100.000 | 27.000 | 27.000 | 21.000 | 1.5 | 1.5 | 0.740 |
| 33016 | 80.000 | 125.000 | 36.000 | 36.000 | 29.500 | 1.5 | 1.5 | 1.615 |
| 33019 | 95.000 | 145.000 | 39.000 | 39.000 | 32.500 | 2.0 | 2.0 | 2.260 |
| 33021 | 105.000 | 160.000 | 43.000 | 43.000 | 34.000 | 2.5 | 2.0 | 2.980 |
| 33108 | 40.000 | 75.000 | 26.000 | 26.000 | 20.500 | 1.5 | 1.5 | 0.484 |
| 33109 | 45.000 | 80.000 | 26.000 | 26.000 | 20.500 | 1.5 | 1.5 | 0.536 |
| 33110 | 50.000 | 85.000 | 26.000 | 26.000 | 20.000 | 1.5 | 1.5 | 0.595 |
| 33113 | 65.000 | 110.000 | 34.000 | 34.000 | 26.500 | 1.5 | 1.5 | 1.300 |
| 33116 | 80.000 | 130.000 | 37.000 | 37.000 | 29.000 | 2.0 | 1.5 | 1.864 |
| 33118 | 90.000 | 150.000 | 45.000 | 45.000 | 35.000 | 2.5 | 2.0 | 3.130 |
For purchasing ST-PE35001 automotive differential bearings, contact our professional team:
