| Place of Origin: | China |
| Brand Name: | Famous brand / OEM |
| Certification: | ISO 9001 2000 |
| Model Number: | NFS30 |

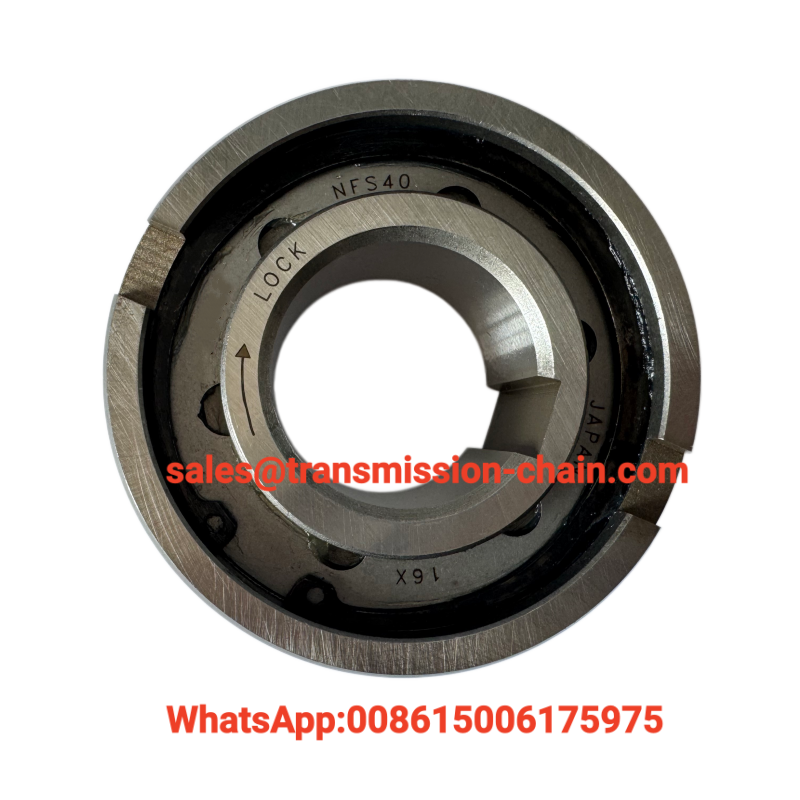

High-performance NFS40 one-way clutch bearing designed for industrial applications requiring reliable overrunning, backstop, or indexing functionality.
| Type | Sprag Freewheel |
| Brand Name | Famous Brand |
| Place of Origin | China |
| Material of Block | Steel |
| Dimension | 40×90×33mm |
| Cage | Steel Cage |
| Application | Conveyors, printing presses, textile equipment, mining gear, and washing machines to prevent reverse rotation |
| Seals Type | Open |
| Certificate | COC |
| Lubrication | Oil or Grease |
| Precision | High Precision |
| Model | NFS40 or ASNU40 |
| Special Design | One Way Clutch |
| Type | Size | Torque | Overrunning Speeds |
Dimensions | Weight | Drag Torque |
||||||||
|
dH7 |
TKN1) [Nm] |
nimax2) [min-1] |
namax3) [min-1] |
Dn6 [mm] |
D5 [mm] |
L [mm] |
b [mm] |
t [mm] |
s [mm] |
e [mm] |
f [mm] |
[kg] |
TR [Ncm] |
|
| ASNU (NFS) |
8 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.07 | 1.6 |
| 12 | 12 | 3300 | 5000 | 35 | 28 | 13 | 4 | 1.4 | 2.4 | 0.6 | 0.3 | 0.06 | 1.6 | |
| 15 | 30 | 2400 | 3600 | 42 | 37 | 18 | 5 | 1.8 | 2.4 | 0.8 | 0.3 | 0.11 | 1.9 | |
| 17 | 49 | 2300 | 3400 | 47 | 40 | 19 | 5 | 2.3 | 2.4 | 1.2 | 0.8 | 0.15 | 1.9 | |
| 20 | 78 | 2100 | 3100 | 52 | 42 | 21 | 6 | 2.3 | 2.4 | 1.2 | 0.8 | 0.19 | 1.9 | |
| 25 | 125 | 1700 | 2600 | 62 | 51 | 24 | 8 | 2.8 | 2.4 | 1.2 | 0.8 | 0.38 | 5.6 | |
| 30 | 255 | 1400 | 2200 | 72 | 60 | 27 | 10 | 2.5 | 2.4 | 1.8 | 1 | 0.54 | 14 | |
| 35 | 383 | 1200 | 1900 | 80 | 70 | 31 | 12 | 3.5 | 2.4 | 1.8 | 1 | 0.74 | 16 | |
| 40 | 538 | 1100 | 1700 | 90 | 78 | 33 | 12 | 4.1 | 2.5 | 1.8 | 1 | 0.92 | 38 | |
| 45 | 780 | 1000 | 1600 | 100 | 85 | 36 | 14 | 4.6 | 2.5 | 1.8 | 1 | 1.31 | 43 | |
| 50 | 1013 | 850 | 1350 | 110 | 92 | 40 | 14 | 5.6 | 2.5 | 1.8 | 1 | 1.74 | 55 | |
| 60 | 1825 | 750 | 1050 | 130 | 110 | 46 | 18 | 5.5 | 3.6 | 2.6 | 1.5 | 2.77 | 110 | |
| 70 | 2300 | 600 | 950 | 150 | 125 | 51 | 20 | 6.9 | 3.6 | 2.6 | 1.5 | 4.16 | 140 | |
| 80 | 3275 | 550 | 850 | 170 | 140 | 58 | 20 | 7.5 | 3.6 | 2.6 | 1.5 | 6.09 | 180 | |
| 90 | 5325 | 500 | 750 | 190 | 160 | 64 | 20 | 8 | 3.6 | 2.6 | 2 | 8.2 | 230 | |
| 100 | 7250 | 450 | 680 | 215 | 175 | 73 | 24 | 8.5 | 3.6 | 2.6 | 2 | 12.6 | 380 | |
| 120 | 13500 | 370 | 550 | 260 | 215 | 86 | 28 | 10 | 3.6 | 2.6 | 2.5 | 22 | 650 | |
| 150 | 26625 | 300 | 460 | 320 | 260 | 108 | 32 | 12 | 3.6 | 3.6 | 2.5 | 42 | 1000 | |
| 200 | 44500 | 230 | 350 | 420 | 350 | 138 | 45 | 16 | 7.6 | 3.6 | 3 | 93 | 2000 | |
Application: Automotive gearbox and related industrial equipment
For purchasing NFS40 one way clutch bearings or technical inquiries, contact our professional bearing specialists:
Email: sales@chain-transmission.com
WhatsApp: 008615006175975
