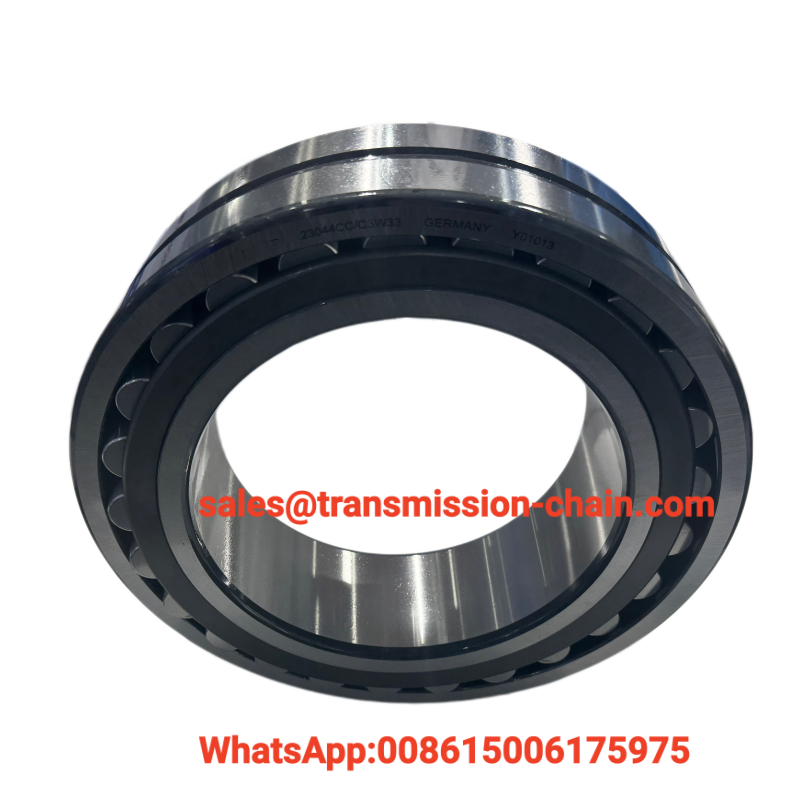

220x340x90mm Steel Cage Spherical Roller Bearing for Mining Applications 23044CC Model

Spherical roller bearings with two rollers, mainly designed to bear radial loads, but also capable of withstanding axial loads in either direction. These bearings feature high radial load capacity and are particularly suitable for heavy loads or vibration applications, though they cannot bear pure axial loads.

The outer ring raceway has a spherical shape, providing excellent self-aligning performance that compensates for concentricity errors. The design includes two symmetrical spherical rollers and a common spherical outer ring raceway, with the inner ring featuring two axis-tilted raceway angles.

This self-aligning capability allows normal operation even when the shaft is bent or installed with misalignment. The allowable aligning angle typically ranges from 1 to 2.5 degrees depending on bearing size. In addition to handling radial loads, these bearings can withstand axial loads and offer good impact resistance. Generally, self-aligning roller bearings operate at lower speeds than other bearing types.

• CA: Integral brass cage, double row symmetrical rollers, inner ring ride
• MA: Integral brass cage, double row symmetrical rollers, outer ring ride
• MB: Two piece brass cage, double row asymmetrical rollers, inner ring ride
• CC: Two piece steel cage, double row symmetrical rollers, inner ring ride
• CTN1: Double row symmetrical rollers, nylon cage
• K: Tapered bore bearing, the taper is 1:12
• K30: Tapered bore bearing, the taper is 1:3

• Printing presses, paper mills or coaters in high precision execution
• Very arduous operating conditions, e.g. continuous casters
• High temperature applications
• Mounting with loose fit on roll necks
• Railway vehicles

Application: automotive gearbox and so on.
