| Place of Origin: | China |
| Brand Name: | Famous brand |
| Certification: | ISO 9001 2000 |
| Model Number: | F-230877.NCF |
F-230877.NCF Full Complement Cylindrical Roller Bearing Hydraulic Pump Bearing 65x90x16mm

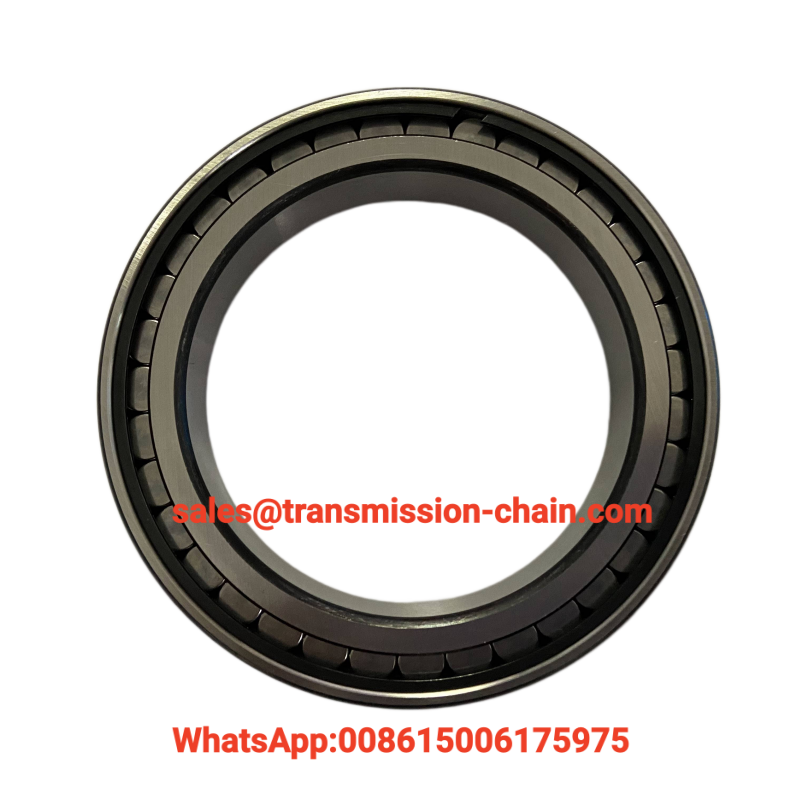

Bearing photos:
Feature:
Simplex row
Full complement roller type
Competitive price
High load
Standard preload
Rick stock
We also supply following CPM series bearing:
| d/mm | Dr/mm | B/mm | Cr kN | Cor kN | Bearing NO. |
| 18 | 32.300 | 20.5 | 24.1 | 25.7 | CPM 2699 |
| 22 | 36.200 | 30.0 | 47.5 | 68.8 | CPM 2435 |
| 22 | 38.750 | 22.5 | 34.6 | 38.1 | CPM 2535 |
| 22 | 38.750 | 22.5 | 34.6 | 38.1 | CPM 2834 |
| 24 | 40.250 | 26.0 | 44.0 | 59.8 | CPM 2400 |
| 24 | 40.250 | 34.0 | 53.3 | 76.4 | CPM 2597 |
| 25 | 40.250 | 26.0 | 44.0 | 59.8 | CPM 2686 |
| 25 | 40.250 | 32.0 | 53.3 | 76.4 | CPM 2613 |
| 28 | 44.450 | 34.0 | 70.8 | 99.8 | CPM 2776 |
| 30 | 46.400 | 32.0 | 73.2 | 105.7 | CPM 2594 |
| 30 | 48.250 | 40.0 | 85.8 | 131.6 | CPM 2687 |
| 30 | 49.600 | 26.0 | 57.0 | 70.3 | CPM 2510 |
| 30 | 49.600 | 24.0 | 50.8 | 60.6 | CPM 2178 |
| 30 | 49.600 | 25.0 | 50.8 | 60.6 | CPM 2651 |
| 30 | 49.600 | 26.0 | 57.1 | 70.4 | CPM 2198 |
| 30 | 49.600 | 30.0 | 69.1 | 90.0 | CPM 2683 |
| 32 | 46.600 | 25.0 | 54.3 | 82.5 | CPM 2508 |
| 32 | 46.600 | 28.0 | 54.3 | 82.5 | CPM 2183 |
| 32 | 46.600 | 28.0 | 54.3 | 82.5 | CPM 2439 |
| 32 | 48.240 | 34.0 | 76.0 | 112.0 | CPM 2668 |
| 32 | 51.750 | 25.0 | 59.1 | 74.7 | CPM 2496 |
| 32 | 51.750 | 29.0 | 71.5 | 95.5 | CPM 2579 |
| 34 | 50.200 | 29.0 | 66.7 | 96.6 | CPM 2634 |
| 35 | 49.800 | 28.0 | 56.8 | 89.7 | CPM 2434 |
| 35 | 52.090 | 26.5 | 56.6 | 79.4 | CPM 2723 |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | CPM 2470 |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | CPM 2520 |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | CPM 2706 |
| 35 | 59.190 | 27.0 | 68.4 | 85.5 | CPM 2721 |
| 35 | 64.300 | 26.5 | 72.9 | 95.7 | CPM 2528 |
| 38 | 52.950 | 28.0 | 59.2 | 97.0 | CPM 2164 |
| 38 | 52.950 | 29.5 | 59.2 | 97.0 | CPM 2504 |
| 38 | 52.950 | 29.5 | 59.2 | 97.0 | CPM 2806 |
| 38 | 54.686 | 29.5 | 56.9 | 86.7 | CPM 2464 |
| 38 | 54.690 | 29.5 | 63.0 | 99.0 | CPM 2458 |
| 38 | 57.910 | 38.0 | 106.0 | 156.0 | CPM 2669 |
| 40 | 57.810 | 34.0 | 96.0 | 141.0 | CPM 2827 |
| 40 | 60.680 | 31.0 | 80.8 | 118.1 | CPM 2729 |
| 40 | 61.740 | 28.0 | 70.6 | 90.6 | CPM 2188 |
| 40 | 61.740 | 35.5 | 100.0 | 140.0 | CPM 2650 |
| 42 | 60.750 | 37.0 | 100.7 | 156.9 | CPM 2412 |
| 42 | 60.750 | 37.0 | 107.2 | 169.7 | CPM 2777 |
| 44 | 61.600 | 34.0 | 90.1 | 153.0 | CPM 2592 |
| 44 | 62.970 | 37.0 | 103.5 | 164.4 | CPM 2401 |
| 45 | 61.550 | 32.0 | 77.3 | 125.7 | CPM 2559 |
| 45 | 61.550 | 36.0 | 90.0 | 153.0 | CPM 2425 |
| 45 | 65.020 | 34.0 | 94.3 | 140.4 | CPM 2647 |
| 45 | 66.850 | 37.5 | 105.8 | 156.7 | CPM 2722 |
| 45 | 66.850 | 37.5 | 123.0 | 157.0 | CPM 2828 |
| 45 | 83.880 | 85.0 | 268.0 | 393.9 | CPM 2619 |
| 46 | 69.500 | 45.0 | 145.0 | 207.0 | CPM 2807 |
| 50 | 67.280 | 32.0 | 75.7 | 145.2 | CPM 2530 |
| 50 | 67.360 | 40.0 | 109.0 | 201.0 | CPM 2720 |
| 50 | 69.580 | 40.0 | 118.0 | 202.0 | CPM 2719 |
| 50 | 69.670 | 32.0 | 89.1 | 141.0 | CPM 2492 |
| 50 | 69.670 | 37.5 | 111.2 | 186.9 | CPM 2609 |
| 50 | 72.050 | 37.0 | 111.7 | 172.5 | CPM 2466 |
| 50 | 72.330 | 40.0 | 130.9 | 194.3 | CPM 2190 |
| 50 | 72.330 | 40.0 | 130.9 | 194.3 | CPM 2465 |
We also supply following type bearings:
Application: automotive gearbox and so on.
If you want to buy F-230877.NCF cylindrical roller bearing,just contact us. We are professional supplier of F-230877.NCF cylindrical roller bearing.
